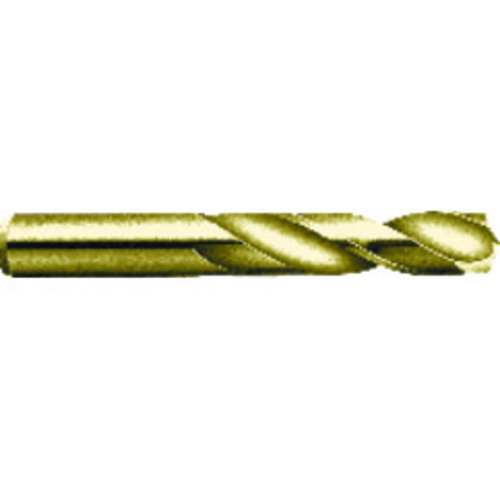

2435 25/64″ HD/SM DRL

Item # MT1513252

UNSPSC: 23241606

Brand: Morse Cutting Tools

MFG#: 13252

UPC #: 01020817 | 68612513252 | 686125132521

Additional Canadian Tariff of 25 %

Quantity Available

Virtual Catalog

Measurement Type

Inch

Flute Length

‎1-7/8″

Drill Bit Size / Cutting Diameter (DC)

25/64″

Flute Type

Standard

Drill Bit Size / Cutting Diameter (DC) - Inch

25/64″

Overall Length (OAL)

‎3-1/4″

Decimal Equivalent

0.3906

Shank Type

Round

Angle

135 Degrees

Style

Heavy Duty

Shape

Screw Machine

Point Shape

Split Point

Coating

Black Oxide

Connection Diameter Machine Side (DCONMS)

25/64″

Cutting Depth

‎1-7/8″

Series/List #

2435

Cutting Edge Material

HSSCo

Product Features

Remarks

Cobalt Screw Machine Length Drills• Heavy duty construction• 135∞ self-centering split point eliminates walking and reduces thrust• Short length provides maximum rigidity for increased hole accuracy and extended tool life• Cobalt steel offers increased hardness, toughness, wear resistance and heat resistance• Recommended for drilling tough, high tensile strength materials and materials that generate higher cutting temperatures including high alloy steels, ferrous castings, titanium, inconel, stainless steels and other difficult-to-drill materials

Country of Origin

USA

Shipping Info

LocalField10

Package Length

3.37500

Package Width

.39000

Package Height

.39000

Package Weight

0.1
