Dynamic Industrial Supply, LLC| Welding & Soldering > MIG Welding Equipment > Mig Welders

Type

Multi-Process

Duty Cycle

‎CV: MIG/Flux Cored - 230 VAC - 285 Amps At 28.25V - 40% Duty Cycle | CC: Stick - 120 VAC - 90 Amps At 23.4 V - 40% Duty Cycle | CC: Stick - 230 VAC - 260 Amps At 30.4 V - 40% Duty Cycle | CC: TIG - 120 VAC - 130 Amps At 15.2 V - 40% Duty Cycle | CC: TIG - 230 VAC - 285 Amps At 21.4 V - 40% Duty Cycle | CV: MIG/Flux Cored - 120 VAC 130 Amps At 20.5 V - 20% Duty Cycle (20A Circuit Breaker)

Output Current

300 A

Frequency

50/60 Hz

Input Current

120/230V

Included

AMP Rating

‎5-300 A

Standards

CSA

Phase

1 Phase

Product Features

Remarks

Power to Perform with 285A at 40% (1ph model) you'll have the confidence to run the full range of .045 in. (1.2 mm) wire, short arc and spray transfer, with increased deposition rates and higher productivity on smaller diameter wires such as .030 in. (0.8 mm) and .035 in. (0.9 mm).
sMIG Technology innovative smart-MIG feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter and plate thickness and you are ready to weld.
With ESABs new 4 Roll Drive System, weld up to .052 in. (1.4 mm) solid wire and up to 1/16 in.(1.6 mm) cored wire. Plus, electrodes up to 5/32 in. (4.0 mm) and TIG rods up to 3/16 in. (5.0 mm).
Unmatched Portability/Mobility weighing in at 70 lbs. (32 kg) with multi-voltage, multi-phase capability and 4 handle roll cage. Detach the Rebel EMP 285ic from its cart and tackle any job around the shop or out at the job site.
TFT Multilingual Display packed full of features, Rebel EMP 285ic has 4 programmable memory locations for each process, multi-language selection, trim adjustment, inductance control, pre/post flow control and spot weld setting giving you the ability to fine tune your welds for the most optimal performance.

Country of Origin

China

Shipping Info

Package Weight

0

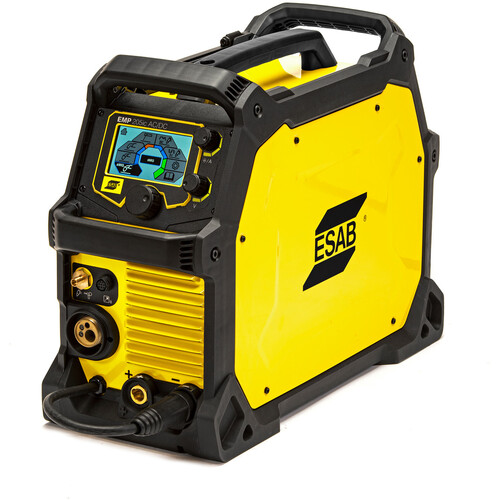

ESAB Rebel/ Rebel EMP 285ic Multi-Process Welder, 120/230 Volt, Single Phase with Cart
